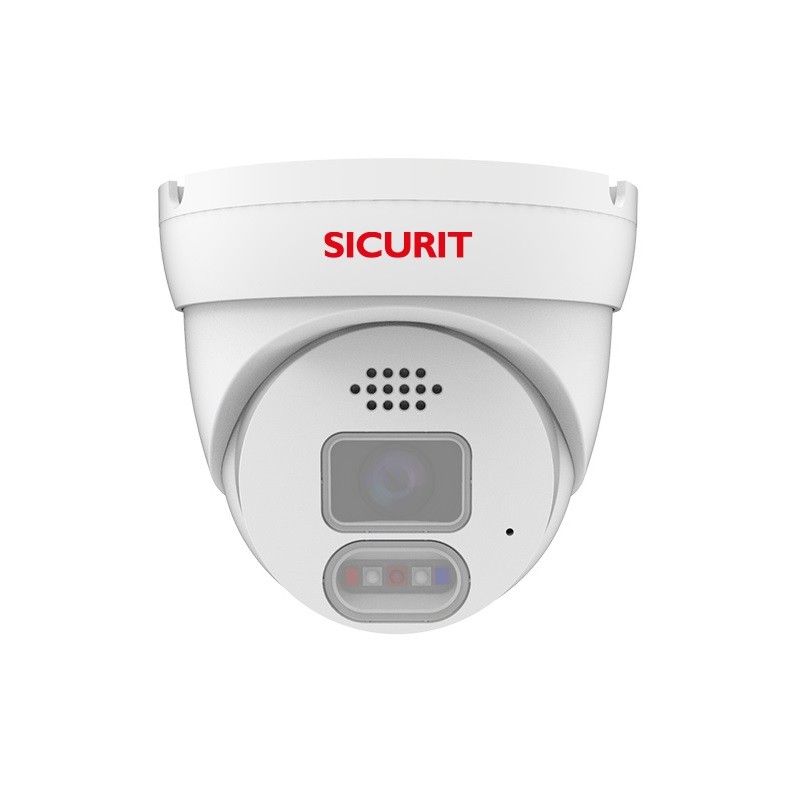

AI PROGRESS TURRET IP 4MP 2.8MM Camera - VIP4TU36AB
For the price of the product chick on "ASK A QUOTE" button
We ship this product everywhere in Italy and EU (Member Countries)
Please note: Regarding Security Systems, the compatibility of our electronic components is guaranteed exclusively with systems sold in Italy
Categories:
Security policy
We use the SSL standard to ensure security during payment
Delivery policy
Orders made on workdays, until 08:00 are shipped same day (if all goods are in stock)
Return policy
Purchases can be returned within 14 days (as per terms and conditions of sale)
AI PROGRESS TURRET IP 4MP Camera 2.8MM manual lens, Day&Night IR Led 25 m, SD Card, H.265/H.264, Intelligent Video Analysis (Human&Vehicle Detection (PD&VD) + Perimeter Intrusion Detection (PID) + Line Crossing Detection (LCD))
TECHNICAL CHARACTERISTICS
Video
Sensor IMX307 1/3" Progressive CMOS
Scanning system Progressive scan
Sensitivity Color 0.002 Lux @ F1.0 AGC ON; B/W 0 lux @ IR ON
Lens type 2.8 mm
Lens type Fixed
Resolution 4MP 2560(H)×1440 (V)
Aperture ratio F No. 1.0
Angular Field of View Horizontal: 72°, Vertical: 42°, Diagonal: 90°
Minimum Object Distance 2m
Operational
IR Led 1
Warm Light 2
Red / Blue Light 2 (1 red and 1 blue)
IR Distance Up to 25m
Warm Light Distance Up to 20m
Complementary Light Type Default warm light, switchable infrared light
Motion Detection Off/On (8 levels)
Wide Dynamic Range DWDR
Digital Noise Reduction 3D DNR
Image Setting Full Color Mode/Day&Night Mode/Schedule
White Balance Auto/Manual
Shutter Speed 1/5 ~ 1/20000s
On-Board Storage MicroSD Slot, up to 256GB
Alarm -
Audio 1 microphone / speaker
Hardware Reset Yes
Intelligent Function SMD（Human&Vehicle Detection（PD&VD）/ Perimeter Intrusion Detection（PID）Line Crossing Detection（LCD） Network Ethernet RJ45 (10/100BASE-T) Video Compression H.265/H.264 Main Stream Resolution &25fps 2MP(1920x1080) Sub Steam &25fps 0x480) Video quality adjustment 512Kbps ~ 4Mbps Bitrate control method CBR/VBR Protocol TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, HTTPS Web browser IE10/11 Security Strong password; Username and password
ONVIF programming interface
Environmental
Operating temperature/humidity -35°C ~ +60°C / < 90%
Protection IP67
Electrical
Input voltage/current 12Vdc/POE (IEEE802.3af)
Power consumption 12Vdc: max 6.2W / POE (48V): max 7.5W
Mechanical
Color/Material White / metal
Dimensions and weight 100x100x90mm / 312g
5014
