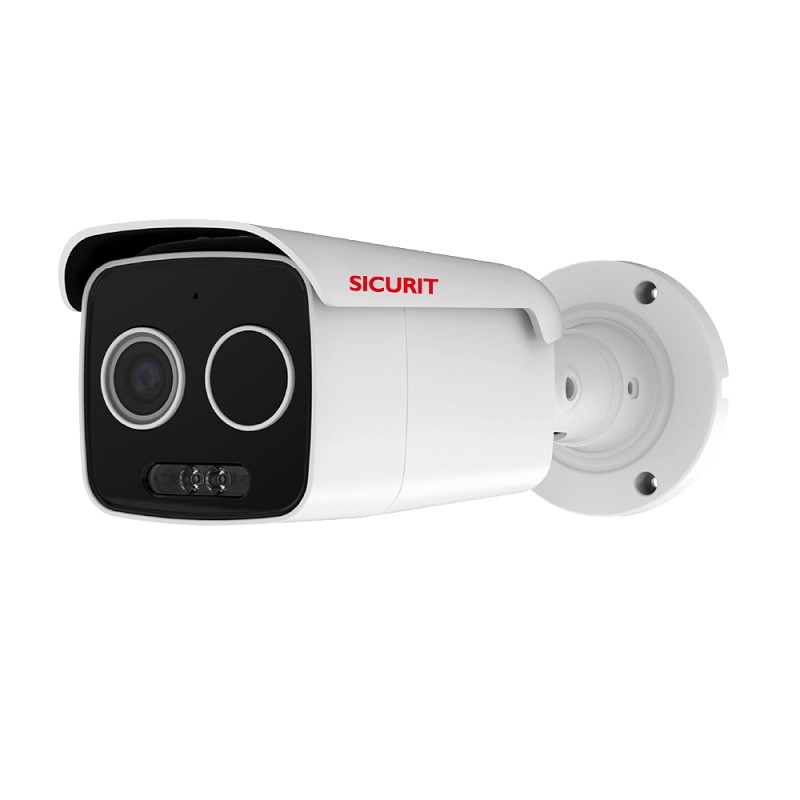

AI PROGRESS DUAL BULLET IP 5MP 3.6MM Camera - VIPTERB32LA
For the price of the product chick on "ASK A QUOTE" button
We ship this product everywhere in Italy and EU (Member Countries)
Please note: Regarding Security Systems, the compatibility of our electronic components is guaranteed exclusively with systems sold in Italy
Categories:
Security policy
We use the SSL standard to ensure security during payment
Delivery policy
Orders made on workdays, until 08:00 are shipped same day (if all goods are in stock)
Return policy
Purchases can be returned within 14 days (as per terms and conditions of sale)
AI PROGRESS BULLET DUAL Thermal and optical IP camera, 5MP, High sensitivity thermal optics with 256×192 resolution, 12 μm, Powerful behavior analysis functions, based on deep learning algorithms (PID, LCD, fire detection) Temperature alarm for fire prevention, from -15°C to 150°C, ± 8°C, Dynamic fire point detection, Image processing technology: linear, histogram, self-adaptive AGC thermal mode, DDE, 3D DNR
INTELLIGENT VIDEO ANALYSIS
AI OPTICAL/THERMAL
Detection: intrusion, area entry/exit, line crossing, people & vehicles.
Person Detection Distance: Detection 126m, Recognition 32m, Identification 21m
OPTIC AI
Face detection, object detection, crossing counting, crowd density, queue length, heat map, unusual sounds.
THERMAL AI
Fire detection, temperature level alarm.
TECHNICAL SPECIFICATIONS
Thermal
Sensor Vanadium Oxide Uncooled Focal Plane Arrays
Resolution 256x192
Pixel Span 12 μm
Spectral Band 8-14μm
NETD (Thermal Sensitivity) ≤ 50 mk @ 25 °C F ＃ 1.0, 25 Hz
Lens (Focal Length) 3.2 mm
IFOV 3.75 million
Field of View 56°x42°
Aperture F 1.1
Optics
Resolution 2592x1944
Sensor 1/2.7" Progressive Scan CMOS
Minimum Illumination Color: 0.003 Lux @ (F1.6, AGC ON)
B/W: 0 @IR ON
Shutter Speed 1/5 s to 1/100,000 s
Lens (focal length) 3.6 mm
Field of view Horizontal: 81°, Vertical: 57°, Diagonal: 108°
WDR 120 dB
Day & Night IR cut filter with auto switch
Image function
Dual-spectrum image fusion
Fusion view of thermal view and overlapping details of optical
channel
Intelligent functions
Intelligent analysis
THERMAL: human and vehicle intrusion detection, area entry
exit, line crossing, fire detection,
high temperature alarm
OPTIC: face detection, object detection, crossing counting,
crowd density, queue length, heat map, rare sounds
Detection distance Person recognition 18 m, vehicle recognition 49 m
Temperature measurement Global, 12 points, 12 areas and 12 lines
-15 °C to + 150 °C (± 8 °C)
Fire detection Dynamic fire point detection
Infrared
IR distance Up to 30 m
Network
Video compression H.265/H.264/MJPEG
Audio compression G.711u/G.711a
Protocols TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP,
SNMP, HTTPS, FTP
User/Host Level 10 users, 2 levels: Administrator, User
Security measures User authentication (ID and PW), HTTPS encryption, IP address filtering
Integrations
Alarm input / output 1-ch input / 1-ch output
Event Alarm
SD Recording / Relay Output / Intelligent Acquisition /
FTP Upload / Email Link / Audio Alarm / Red and Blue Flashing
Light
Audio Input / Output 1-ch /1-ch output/ 1 built-in speaker
Reset Yes
Network Interface 1x RJ45 10M/100M self-adaptive Ethernet interface
SD Memory Card micro SD card slot (up to 256 GB)
Web Browser Firefox, Chrome, Edge, Safari
General
Power supply 12 VDC ± 20%, PoE (802.3af)
Protection grade IP66
5022
