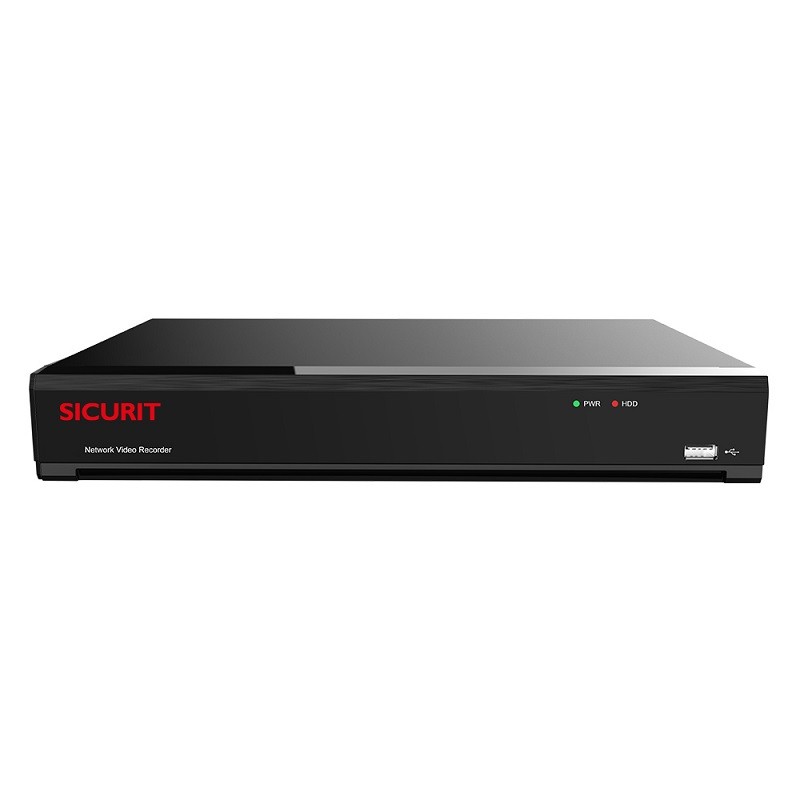

Hybrid HDVR Video Recorder 8+4CH AI PROGRESS - VIXVR08IB
For the price of the product chick on "ASK A QUOTE" button
We ship this product everywhere in Italy and EU (Member Countries)
Please note: Regarding Security Systems, the compatibility of our electronic components is guaranteed exclusively with systems sold in Italy
Categories:
Security policy
We use the SSL standard to ensure security during payment
Delivery policy
Orders made on workdays, until 08:00 are shipped same day (if all goods are in stock)
Return policy
Purchases can be returned within 14 days (as per terms and conditions of sale)
Hybrid Video Recorder “PROGRESS” 8BNC+IP (12CH) 4K AHD+CVI+TVI+CVBS+IP
CHANNEL EXAMPLES:
8 BNC + 4 IP
2 BNC + 10 IP
4 BNC + 8 IP
• Out band 96Mbps
• Audio 8 in/1 out
• Alarm 8 in/1 out
• 1 Lan Port
• 1 BNC / 1HDMI 4K / 1VGA FHD
INTELLIGENT VIDEO ANALYSIS
MAX 8 BNC CHANNELS
• Face recognition
• Perimeter intrusion detection
• Line crossing detection
• People and vehicle detection
• Face detection
TECHNICAL FEATURES
Inputs 32Mbps~96Mbps
Outputs 96Mbps
Analog Video Input 16CH Inputs
IP Video Input 4ch (IP only up to 12ch)
Composite Video Input up to 12ch (Analog Video + IP Video)
Audio Compression: G.711a, Video: H.264/H.265
Screen Resolution
Analog: 8MP(15fps), 5MP(20fps), 4MP/3MP/1080P/
720P/960H (30fps)
IP: 8MP/4MP/3MP/1080P/720P
Speed
Analog: 8MP:10fps (each channel); 5MP: 14fps (each channel);
4MP: 18fps (each channel); 1080P: PAL: 25fps (each channel)/NTSC:
30fps (each channel)
IP: PAL: 25fps (each channel)/NTSC: 30fps (each channel)
MD Event (Sensitivity Level 1~8); Video Loss; Buzzer,
Email, Mobile APP Push Notification
Playback Function Fast Forward/Backward (2x, 4x, 8x,16x);
Slow forward (1/2x, 1/4x, 1/8x, 1/16x)
Playback
Mainstream analog
8MP: 10fps (each channel) 5MP: 14fps (each channel) 4MP:
18fps (each channel) 1080P: PAL: 25fps (each channel)/NTSC:
30fps (each channel)
IP
PAL: 25fps (each channel)/NTSC: 30fps (each channel)
AI
Perimeter intrusion detection, line crossing detection,
people and vehicle detection, face detection,
face recognition
MAXIMUM 8 CHANNELS
P/W reset Yes
BNC 1 (704*576)
VGA 1（1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080) HDMI 1（1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080, 2560*1440, 3840*2160/EDID） Ethernet 1 RJ45 100/1000 Base- T USB USB2.0*1(front); USB3.0*1(rear)
Audio 8 in/1 out
E-sata /
HDD 1 SATA HDD, up to 10TB
LAN 1
RS485 1
Alarm in/out 8 in/1 out
Dimensions (WxDxH) 300X227X53 mm
Input voltage/current 2 HDD: 12V DC/5A
Power consumption (excluding HDD) 11W
Operating temperature/humidity Temperature: -10°C~+50°C (14°F ~ 122°F)
Humidity: Less than 90%RH
5034
