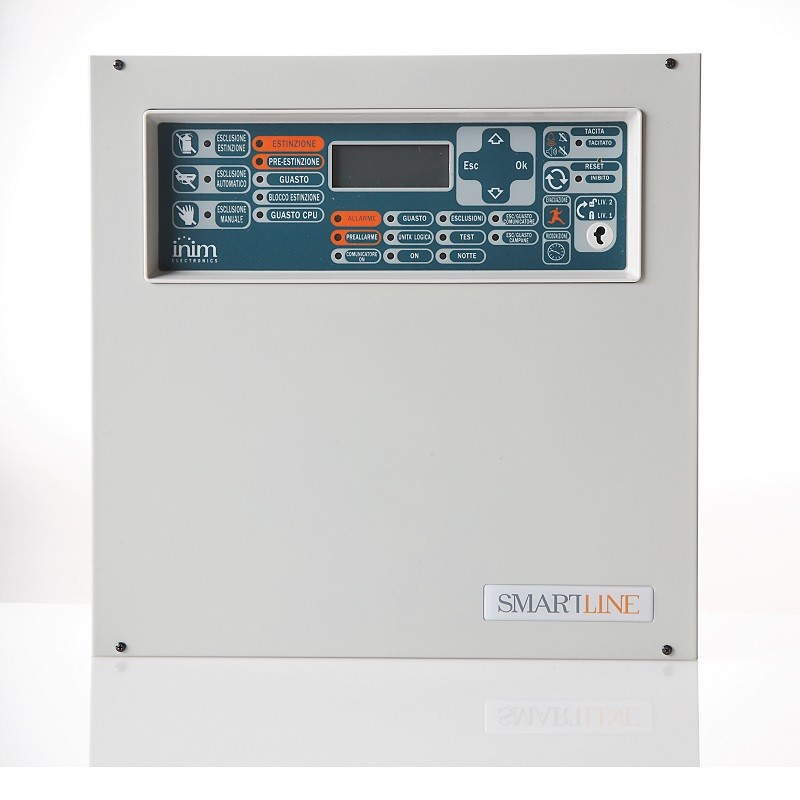

CRI800 / 4 - SMARTLINE 4 zone esp 20 fire alarm control unit by Sicurit

CRI800 / 4 is a conventional fire detection control panel offered in the 4-zone configuration expandable to 20. The extreme compactness and simplicity of use and programming make it the ideal choice for all small installations where programming and installation speed are required. among the most important elements of the installation. The small size of the plants does not detract from the high technological level found on the various models offered. CRI800 / 4 is able to house the optional CRISPENG extinguishing card. This card is approved according to the EN12094-1 standard and offers a complete package of functions for the management of an extinguishing system. CRI800 / 4 offers 4 supervised outputs for alarm and fault in order to ensure constant control of the operation of these outputs. The control panel is able to identify anomalous situations and diagnose them by offering a wide range of signals: alarm, pre-alarm, fault, exclusion, test, monitor. For each zone the control unit offers a configurable line such as: open-collector output, supervised input, gas detector input with 4-20mA interface, gas detector input with open-collector interface. This type of flexibility considerably increases the application possibilities of the CRI800 / 4. For notifications to the user, the control unit uses the graphic display and signaling LEDs. CRI800 / 4 manages an RS485 remote communication bus. Up to 4 remote control panels (CRI800RIP model repeater) can be connected to this bus. In this way it will be possible to have information, reports and interact with the control panel as if you were in front of it. Programming from the front panel is surprisingly simple and intuitive thanks to the use of the graphic display that offers a clear and friendly guided interface. Through the RS232 serial connection it is possible to program the control unit also by means of a PC on which the SmartLeague programming software is installed, which further simplifies the programming procedures of the control unit.
