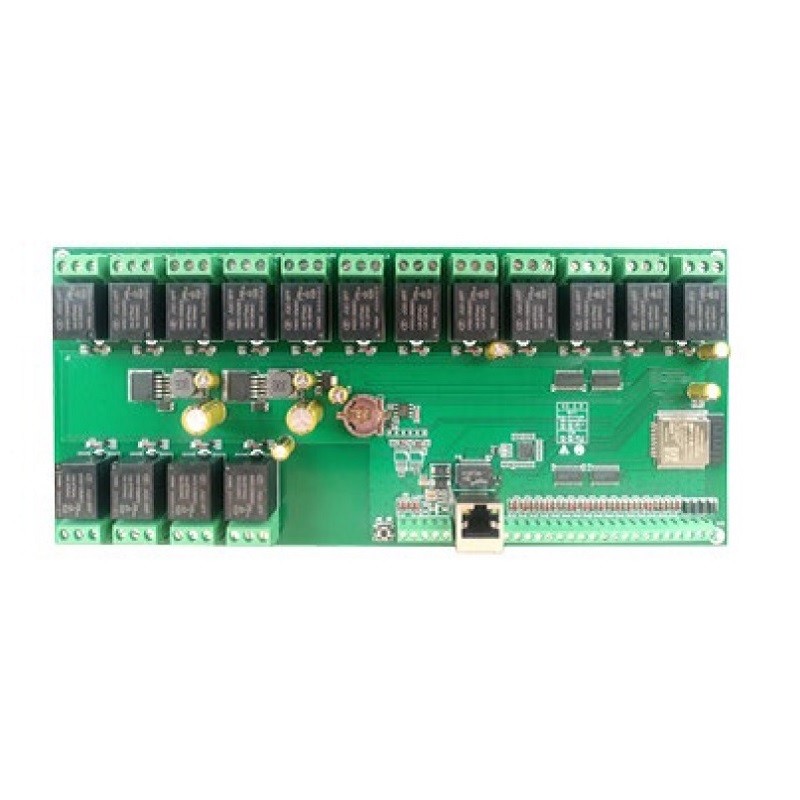

IOTRE16CH LAN Card for Remote Control 16CH I/O Physical Contacts
For the price of the product chick on "ASK A QUOTE" button
We ship this product everywhere in Italy and EU (Member Countries)
Please note: Regarding Security Systems, the compatibility of our electronic components is guaranteed exclusively with systems sold in Italy
Categories:
Security policy
We use the SSL standard to ensure security during payment
Delivery policy
Orders made on workdays, until 08:00 are shipped same day (if all goods are in stock)
Return policy
Purchases can be returned within 14 days (as per terms and conditions of sale)
I/O data acquisition devices – input-output – remotely: with these modules it is possible to activate and deactivate devices at long distances, thanks to the use of the LAN network.
These modules, if used individually, can receive, via LAN network, GET strings, generated for example by a camera, and activate their own on-board relays, all without laying dedicated cables, but using the same data network therefore with considerable management distances.
The IOT cards can also be managed with MODBUS and MQTT protocol and with the optional TVSPLAT2 module powered directly in PoE.
The Ethernet interface can quickly connect many devices at the same time. The data collected by the Ethernet are transmitted via different communication protocols.
TECHNICAL CHARACTERISTICS
- Inputs: 4 / 8 / 16 digital inputs
- Outputs: 4 / 8 / 16 outputs on NC/NO relays
- Voltage: 12VDC / 24VDC / 12VAC / 24VAC
- Maximum absorption: 1.5A@12VDC / 1.65A@12VDC / 1.75A@12VDC
- Relays: NO/NC
- Inputs: Digital
- Operating temperature: -10°C~85°C
- Communication interfaces: WIFI / RJ45
- Protocols: WIFI, TCP server / client, UDP, HTTP GET CGI, Modbus-RTU /ASCII / TCP / UDP, Modbus-RTU Over TCP/UDP, ModbusASCII Over TCP/UDP, MQTT, CoAP, CAN
- Home Automation System: Domoticz, Home assistant, OpenHAB, Red-Node
- Functions:
• IP Watchdog
• Jogging: control of the on-board relay with reset to the starting position for times less than a second
• Delay: control of the on-board relay with reset to the starting position for times greater than a second
• Timing: month / week / day / hour / minute / second planner for relay control
• Remote control of physical inputs on remote relays via Ethernet connection
Other features
- Watchdog function
- Container for DIN rail mounting
PRODUCT LIST
- IOTRE4CH LAN I/O card 4 Input - 4 Output
- IOTRE8CH LAN I/O card 8 Input - 8 Output
- IOTRE16CH LAN I/O card 16 Input - 16 Output
- IOTRE32CH LAN I/O card 32 Input - 32 Output (on order)
