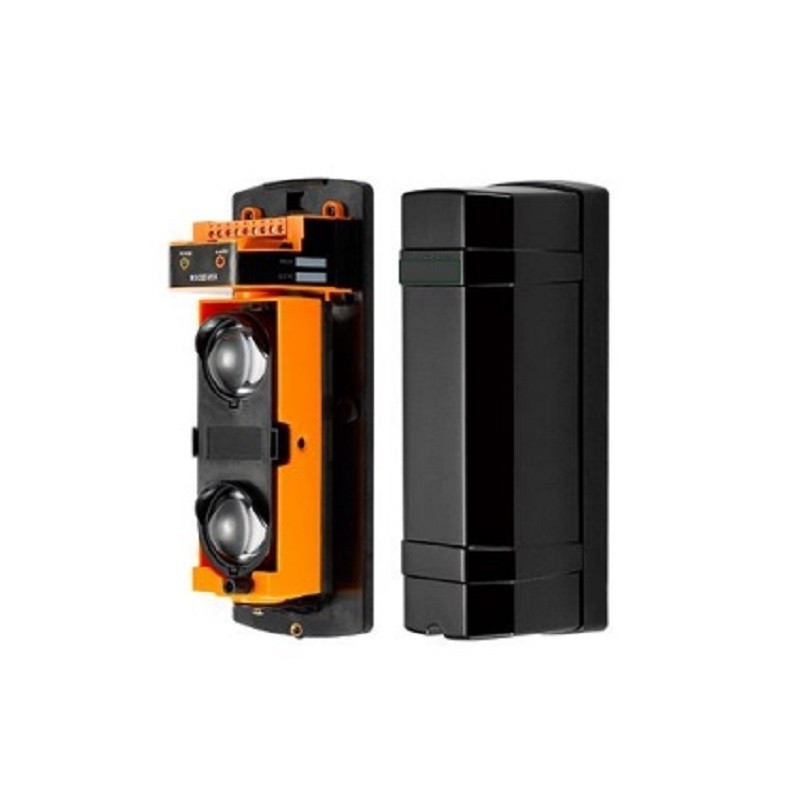

Double barrier for outdoor SICURIT range 60m BAD060

Double barrier for outdoor SICURIT range 60m with digit for alignment and disqualification output (8 selectable channels)

Operation even in the presence of strong external ambient light (sun, car headlights). Patented chip set with multidimensional error correction. 8 digital frequencies. Equipped with an exclusive filter that improves detection even in critical environmental conditions.

The numeric digits on the receiver facilitate the alignment of the optics. Optical aiming sight available.

The side dip switches allow you to select the different operating modes. Relay output for disqualification in case of heavy fog. Ideal for installation in outdoor columns of the Sicurit BEC and BET series.

TECHNICAL FEATURES:

Power supply voltage: 12 Vdc

Current Absorption: 75mA

Alarm output: Relay: C. - N.C. (free from potential)

Disqualification output: Relay: C. - N.C. - N.A. (free from potential)

Tamper: C/NC

Outdoor range: 60 m.

Horizontal lens adjustment: 180° horizontal

Vertical lens adjustment: 20° horizontal

Operating temperature: -25° to +55°C

Degree of protection: IP65 (in its own container)

Number of lenses: 2

Detection mode: all lenses stopped simultaneously

Optical source: Digital pulse infrared beam - 8 selectable frequencies

Interruption time: adjustable 50 – 100 – 300 – 700 mS

Frequencies/Channels: 8

LED with automatic switch-off after approximately 60 minutes from power supply

Weight: approximately 1.0 Kg. (package)

Alarm relay release time: minimum 1 sec
Alarm relay contact: N.C./N.A. - 30V 2A resistive
Operating temperature: -25 ° C / + 70 ° C
