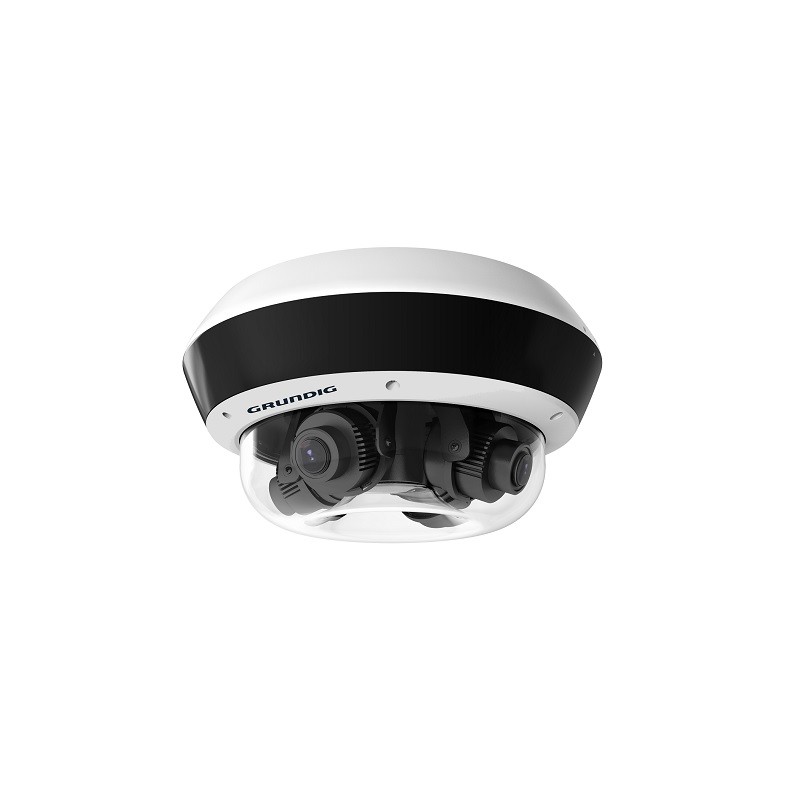

Telecamera IP Panoramico 360° 20 MP GRUNDIG Linea Smart GU-CI-AP20527Q

Telecamera IP Panoramico 360° 20 MP, 4X Zoom, IR LED 30m, Linea SMART

CARATTERISTICHE TECNICHE

Camera

Image Sensor: 1/2.7” progressive Scan CMOS

Resolution (MP): 20 MP

Video Resolution: 2880 x 1620

Sensitivity Colour: 0.006 Lux @ F1.2 (AGC ON)

Sensitivity B/W: 0 Lux LED IR on

Shutter Speed: 1/5 ~ 1/20000 s

White Balance: Auto , Manual

Lens

Lens Focal Length: 4 x movable lenses 2.8 ~ 12 mm motorized, autofocus

Iris F-Number: F1.3

Lens Mount: Ø16.7

Lens Drive Type: Auto Iris (DC)

Field of View : 112° ~ 35° (horizontal), 58° ~ 20° (vertical), 137° ~ 41° (diagonal)

Illuminator

Max. IR Distance: Up to 30 m

Video

Col/B&W: On, Off, Auto, IR-cut filter removable (ICR)

Wide Dynamic Range: 120 dB

Image Enhancement: BLC, 3D DNR, Defog, HLC

Day/Night Switch: Support auto, scheduled, day, night

Audio

Audio Compression: G.711

General

Reset Button: yes

Accessories included: Wall mount bracket, Power supply

Frame Rate

Main Stream: 50 Hz: 25 fps (2880 x 1620, 2592 x 1520, 2304 x 1296, 1920 x 1080, 1280 x 720) 60 Hz: 30 fps (2880 x 1620, 2592 x 1520, 2304 x 1296, 1920 x 1080, 1280 x 720)

Sub- Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 620 × 240) 60 Hz: 30 fps (1280 × 720, 640 × 480, 620 × 240)

3rd Stream: 50 Hz: 25 fps (640 x 480, 320 x 240) 60 Hz: 25 fps (640 x 480, 320 x 240)

Network

Video Compression: H.264, H.264+, H.265, H.265+ , MJPEG

Region of Interest: 8 fixed regions for each stream

H.264 code profile: Baseline Profile / Main Profile / High Profile

Bit Rate: 8 Kbps to 8 Mbps

SD Memory: Micro SD/SDHC/SDXC card slot with ANR (up to 256G), NAS (Support NFS, SMB/CIFS)

Web Browser: Plug-in required live view: IE10/IE11

Non Plug-in live view: Chrome 57+, Mozilla Firefox 52+, EDGE 89+

Local Service: Chrome 57+, Firefox 52+, EDGE 89+

Network Protocol: TCP/IP, IPv4/IPv6, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, PPPoE, SNMP

Cyber Security: Different password levels, password protection, complicated password, HTTPS encryption, digest authentication for HTTP/HTTPS , IP address filter, WSSE and digest authentication for

ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.0, TLS 1.1 & TLS 1.2, TLS 1.2 with updated cipher suites including AES 256 encryption, Brute Force Delay Protection, Signed Firmware.

I/O Interface

Audio Input/Output: 1-ch audio input and 1-ch audio output

Alarm Input/Output: 2, 2

Network Interface: 1x 10, 100, 1000 Base T, TX (RJ-45)

Intelligent Functions

People & Vehicle Detection: Adjustable whether people, motorized or non-motorized vehicles should be detected.

Intrusion Detection: Enter and loiter in a pre-defined virtual region

Line Crossing: Cross a pre-defined virtual line with target classification Pedestrian and or Motor vehicle can be configured.

Region Entrance: Enter a pre-defined virtual region from the outside place

Region Exiting: Exit from a pre-defined virtual region

Unattended Baggage: Objects left over in the pre-defined region such as the baggage, purse, dangerous materials

Object Removal: Detects objects left over or lost in the pre-defined region such. In this case an alarm notification or signal will be sent automatically and in real time.

Face Detection: Face recognition in real time and instantly match them against a watchlist

Face Recognition: Detects and recognizes faces by comparing them to stored portrait images. Actions can be triggered via the allowed, blocked and other list

License Plate Recognition: Detects and recognizes car number plates. (Data- import- export function, actions can be triggered via the allowed, blocked and other list, only supported with insert SD-Card).

Heat Map: Visualizes the number of people in the surveillance area over a period of time with a simple and user-friendly color scheme

Queue Length Detection: Counts people in a predefined area and measures service time. The area, the maximum number of people in it and the maximum service time can be set

Tamper Protection: Scene change and defocus

Limits of intelligent functions: Only one of the AI functions can be selected at a time

Event Source: A variety of internal or external events can trigger actions such as alarm contacts, motion detection, video analytics parameters etc.

Event Action: Recording: Pre-event, post-event memory card and/or network storage. Picture upload: FTP, HTTP. Trigger E-mail notification: white light alarm, alarm output and notification to C-WERK VMS. Events are depending on schedule settings.

Approvals

Protection Rating: IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)

Regulation: CE, FCC, RoHS Compliant

Standard: ONVIF (Profile S, Profile G, Profile T, Profile M), SDK/API

Environmental

Operating Temperature: -30 °C ~ +55 °C (-22 °F ~ 131 °F)

Humidity: Less than 95%, non condensing

Electrical

Supply Voltage: 12 VDC, 24 VAC, Hi-PoE (IEEE 802.3bt)

Power Consumption: Max. 34 W

Mechanical

Mount: Four flexible lens in one track, slide range -60° to 60°, tilt: 0° to 90°, rotate 0° to 355°

Dimensions: Ø 300 × 195 mm (Ø 11.8 × 7.7 inch)

Weight: 5000 g (11.03 lb.)

Packaging

Package Dimensions: 500 x 395 x 385 mm (19.7 x 15.6 x 15.2 inch)

Package Weight: 9000 g (19.8 lbs)

Packaging Unit: 1
